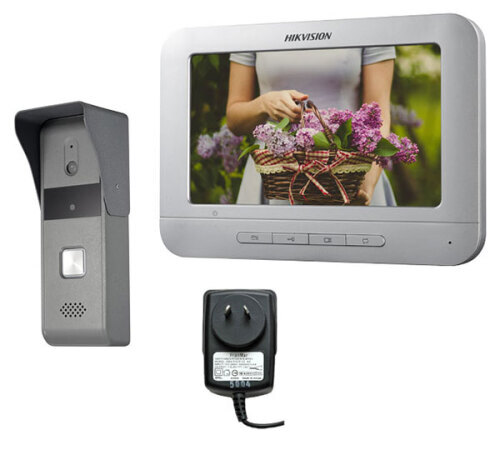

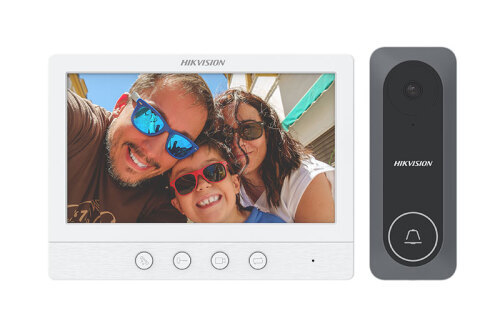

Hikvision Video Intercom Kit
iCentral Hikvision Analogue Video Intercom Kit
Easy Install video intercom kit with quality audio & video.
DOOR STATION
Hands-free video intercom communication
IR illumination for night-time use
One-touch calling
720P colour camera
Door lock output
IP65 weather resistant
Optional expansion up to 2 door stations per system
ROOM STATION
Hands-free video intercom communication
Optional expansion up to 3 room stations per system
Monitor the door station and an external CCTV camera
Remote door unlocking
Wall mounting
Easy 4 wire installation
Door Station/Video Parameters
- Resolution 1280 × 720
- FOV Horizontal: 130°，Vertical: 70°
Door Station/Audio Parameters
- Audio Input Built-in omnidirectional microphone
- Audio OutputBuilt-in loudspeaker
Door Station/General
- Power Supply 12 VDC
- Working Temperature -10° C to + 55° C
- Working Humidity 10% to 90%
- Dimensions 136 mm × 51 mm × 20 mm
- Protective Level NOT WEATHPROOF
Indoor Station/Display Parameters
- Operation Method Physical button
- Type 7-inch colour TFT LCD
- Resolution 1024 × 600
Indoor Station/Audio Parameters
- Audio Input Built-in omnidirectional microphone
- Audio Output Built-in loudspeaker
Indoor Station/General
- Power Supply 12 VDC
- Power Consumption ≤5 W
- Working Temperature -10° C to + 55° C
- Working Humidity 10% to 90%
- Dimensions (W × H × D)178 mm × 132 mm × 19 mm
1x Door Station
1x Room Station
1x 12V power supply
1x 5m cable
3 years
